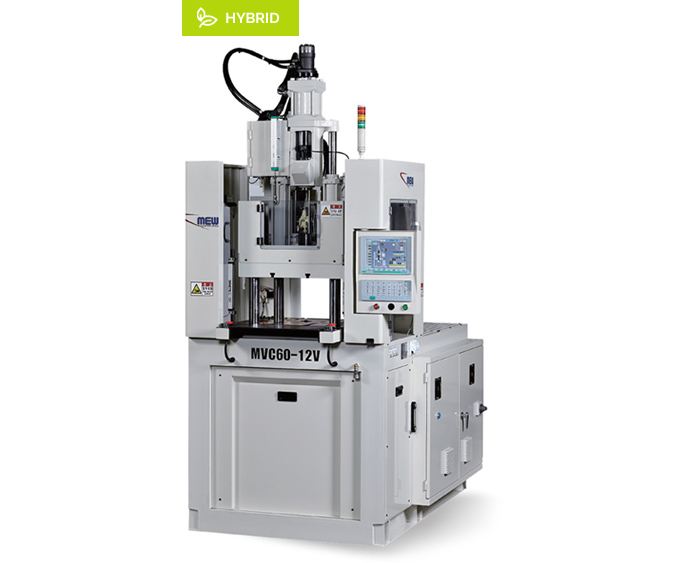

MVC Series

MVC Series
Single-Stage type
(40 ~ 275 US ton)
  • Energy saving ac servo hybrid
  • Anti wear screw & barrel
  • Up to 39.4 inch/sec injection speed (Optional)
  • Nozzle shut off type
  • Easy operation
DOWNLOAD CATALOG >
MODEL MVC-35
 Screw type S A B
 Screw diameter in 0.63 0.71 0.87
(mm) (16) (18) (22)
 Injection capacity (PS) oz 0.5 0.6 1.0
(g) (14) (18) (27)
 Max. Injection pressure Mpa 243 186 147
psi 37,919 29,954 20,055
(kg/㎠) (2,666) (2,106) (1,410)
 Clamping force US ton 39
kN 343
 Clamping stroke in 9.1
(mm) (230)
 Tie bar clearance (H x V) in 14.6 x 10.2
(mm) (370 x 260)
Max. mold opening stroke in 18.7 / 19.9
(mm) (475 / 505)
 Mold thickness in 8.1 ~ 10.6
(mm) (205 ~ 270)
 Machine dimension (L x W x H) ft 3.3 x 4.6 x 9.5
(m) (1.00 x 1.40 x 2.90)
MODEL MVC-60
 Screw type S A B
 Screw diameter in 0.87 0.98 1.10
(mm) (22) (25) (28)
 Injection capacity (PS) oz 1.2 1.6 1.9
(g) (34) (44) (55)
 Max. Injection pressure Mpa 263 204 162
psi 38,161 29,556 23,554
(kg/㎠) (2,683) (2,078) (1,656)
 Clamping force US ton 66
kN 588
 Clamping stroke in 9.1
(mm) (230)
 Tie bar clearance (H x V) in 15.8 x 11.6
(mm) (400 x 295)
Max. mold opening stroke in 21.3 / 23.2
(mm) (540 / 590)
 Mold thickness in 8.7 ~ 12.2
(mm) (220 ~ 310)
 Machine dimension (L x W x H) ft 4.5 x 6.5 x 10.4
(m) (1.39 x 2.00 x 3.16)
MODEL MVC-85
 Screw type S A B
 Screw diameter in 1.10 1.26 1.38
(mm) (28) (32) (35)
 Injection capacity (PS) oz 1.9 2.5 3.1
(g) (55) (72) (87)
 Max. Injection pressure Mpa 282 216 180
psi 40,892 31,306 26,171
(kg/㎠) (2,875) (2,201) (1,840)
 Clamping force US ton 94
kN 834
 Clamping stroke in 9.4
(mm) (240)
 Tie bar clearance (H x V) in 21.3 x 16.5
(mm) (540 x 420)
Max. mold opening stroke in 22.0 / 23.6
(mm) (560 / 600)
 Mold thickness in 8.7 ~ 12.2
(mm) (220 ~ 310)
 Machine dimension (L x W x H) ft 4.6 x 6.9 x 11.0
(m) (1.41 x 2.10 x 3.34)
MODEL MVC-100
 Screw type S A B
 Screw diameter in 1.26 1.38 1.57
(mm) (32) (35) (40)
 Injection capacity (PS) oz 2.5 3.1 4.0
(g) (72) (87) (113)
 Max. Injection pressure Mpa 216 180 138
psi 31,306 26,171 20,041
(kg/㎠) (2,201) (1,840) (1,409)
 Clamping force US ton 110
kN 981
 Clamping stroke in 9.4
(mm) (240)
 Tie bar clearance (H x V) in 21.3 x 16.5
(mm) (540 x 420)
Max. mold opening stroke in 22.0 / 23.6
(mm) (560 / 600)
 Mold thickness in 8.7 ~ 12.2
(mm) (220 ~ 310)
 Machine dimension (L x W x H) ft 4.9 x 7.0 x 11.5
(m) (1.49 x 2.15 x 3.50)
MODEL MVC-120
 Screw type S A B
 Screw diameter in 1.38 1.57 1.77
(mm) (35) (40) (45)
 Injection capacity (PS) oz 6.4 8.4 10.6
(g) (182) (238) (301)
 Max. Injection pressure Mpa 262 203 160
psi 38,446 29,428 23,255
(kg/㎠) (2,703) (2,069) (1,635)
 Clamping force US ton 132
kN 1,177
 Clamping stroke in 10.6
(mm) (270)
 Tie bar clearance (H x V) in 25.2 x 14.6
(mm) (640 x 370)
Max. mold opening stroke in 28.0 / 31.1
(mm) (710 / 790)
 Mold thickness in 12.8 ~ 17.1
(mm) (325 ~ 435)
 Machine dimension (L x W x H) ft 4.9 x 7.1 x 12.5
(m) (1.49 x 2.16 x 3.80)
MODEL MVC-150
 Screw type S A B
 Screw diameter in 1.57 1.77 1.97
(mm) (40) (45) (50)
 Injection capacity (PS) oz 8.4 10.6 13.1
(g) (238) (301) (371)
 Max. Injection pressure Mpa 203 181 161
psi 29,428 26,199 23,298
(kg/㎠) (2,069) (1,842) (1,638)
 Clamping force US ton 165
kN 1,471
 Clamping stroke in 10.6
(mm) (270)
 Tie bar clearance (H x V) in 25.2 x 14.6
(mm) (640 x 370)
Max. mold opening stroke in 28.0 / 31.1
(mm) (710 / 790)
 Mold thickness in 12.8 ~ 17.1
(mm) (325 ~ 435)
 Machine dimension (L x W x H) ft 5.0 x 7.2 x 13.3
(m) (1.51 x 2.20 x 4.04)
MODEL MVC-200
 Screw type S A B
 Screw diameter in 1.97 2.17 2.36
(mm) (50) (55) (60)
 Injection capacity (PS) oz 14.0 17.0 20.2
(g) (398) (481) (573)
 Max. Injection pressure Mpa 177 160 134
psi 25,645 23,170 19,472
(kg/㎠) (1,803) (1,629) (1,369)
 Clamping force US ton 220
kN 1,961
 Clamping stroke in 11.8
(mm) (300)
 Tie bar clearance (H x V) in 27.6 x 17.7
(mm) (700 x 450)
Max. mold opening stroke in 29.5 / 33.5
(mm) (750 / 850)
 Mold thickness in 13.8 ~ 18.1
(mm) (350 ~ 460)
 Machine dimension (L x W x H) ft 5.1 x 8.0 x 15.4
(m) (1.54 x 2.45 x 4.70)
MODEL MVC-250
 Screw type S A B
 Screw diameter in 2.36 2.56 2.76
(mm) (60) (65) (70)
 Injection capacity (PS) oz 20.5 22.1 24.7
(g) (582) (627) (701)
 Max. Injection pressure Mpa 160 139 118
psi 23,198 20,226 17,096
(kg/㎠) (1,631) (1,422) (1,202)
 Clamping force US ton 275
kN 2,452
 Clamping stroke in 11.8
(mm) (300)
 Tie bar clearance (H x V) in 27.6 x 17.7
(mm) (700 x 450)
Max. mold opening stroke in 29.5 / 33.5
(mm) (750 / 850)
 Mold thickness in 13.8 ~ 18.1
(mm) (350 ~ 460)
 Machine dimension (L x W x H) ft 5.3 x 8.7 x 16.4
(m) (1.61 x 2.65 x 5.00)
  • All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
  • E-Solution Inc is not responsible for any inaccuracies contained herein.
  • Please consult our sales representative or our head office before designing a mold.
  • Actual plasticizing capacity may vary, depending on the molding conditions and material used.

MVR Series

MVR Series
Rotary Table type
(40 ~ 275 US ton)
  • Energy saving ac servo hybrid
  • Anti wear screw & barrel
  • Up to 39.4 inch/sec injection speed (Optional)
  • Turntable rotate by AC servo motor
  • Nozzle shut off type
DOWNLOAD CATALOG >
MODEL MVR-35
 Screw type S A B
 Screw diameter in 0.63 0.71 0.87
(mm) (16) (18) (22)
 Injection capacity (PS) oz 0.5 0.6 1.3
(g) (14) (18) (37)
 Max. Injection pressure Mpa 256 208 229
psi 37,137 30,168 33,211
(kg/㎠) (2,611) (2,121) (2,335)
 Clamping force US ton 39
kN 343
 Clamping stroke in 8.7
(mm) (220)
Rotary table diameter (Φ) in 27.6
(mm) (700)
Max. mold opening stroke in 18.9
(mm) (480)
 Mold thickness in 7.1
(mm) (180)
 Machine dimension (L x W x H) ft 3.4 x 6.9 x 9.6
(m) (1.04 x 2.10 x 2.93)
MODEL MVR-55
 Screw type S A B
 Screw diameter in 0.87 0.98 1.10
(mm) (22) (25) (28)
 Injection capacity (PS) oz 1.3 2.0 2.6
(g) (37) (58) (73)
 Max. Injection pressure Mpa 229 209 174
psi 33,183 30,353 25,232
(kg/㎠) (2,333) (2,134) (1,774)
 Clamping force US ton 61
kN 539
 Clamping stroke in 8.7
(mm) (220)
Rotary table diameter (Φ) in 33.5
(mm) (850)
Max. mold opening stroke in 18.9
(mm) (480)
 Mold thickness in 7.1
(mm) (180)
 Machine dimension (L x W x H) ft 3.8 x 7.4 x 10.3
(m) (1.15 x 2.25 x 3.15)
MODEL MVR-85
 Screw type S A B
 Screw diameter in 1.10 1.26 1.38
(mm) (28) (32) (35)
 Injection capacity (PS) oz 2.6 4.2 4.9
(g) (73) (118) (140)
 Max. Injection pressure Mpa 168 217 179
psi 24,421 31,448 26,029
(kg/㎠) (1,717) (2,211) (1,830)
 Clamping force US ton 94
kN 834
 Clamping stroke in 9.1
(mm) (230)
Rotary table diameter (Φ) in 39.4
(mm) (1,000)
Max. mold opening stroke in 22.0
(mm) (560)
 Mold thickness in 8.3
(mm) (210)
 Machine dimension (L x W x H) ft 4.6 x 8.0 x 11.5
(m) (1.40 x 2.44 x 3.49)
MODEL MVR-100
 Screw type S A B
 Screw diameter in 1.26 1.38 1.57
(mm) (32) (35) (40)
 Injection capacity (PS) oz 4.2 4.9 6.5
(g) (118) (140) (184)
 Max. Injection pressure Mpa 217 181 157
psi 31,462 26,242 22,772
(kg/㎠) (2,212) (1,845) (1,601)
 Clamping force US ton 110
kN 981
 Clamping stroke in 11.0
(mm) (280)
Rotary table diameter (Φ) in 39.4
(mm) (1,000)
Max. mold opening stroke in 24.0
(mm) (610)
 Mold thickness in 9.8
(mm) (250)
 Machine dimension (L x W x H) ft 4.6 x 8.0 x 12.1
(m) (1.40 x 2.44 x 3.70)
MODEL MVR-120
 Screw type S A B
 Screw diameter in 1.38 1.57 1.77
(mm) (35) (40) (45)
 Injection capacity (PS) oz 6.1 7.8 10.0
(g) (173) (222) (283)
 Max. Injection pressure Mpa 204 196 164
psi 29,656 28,447 23,767
(kg/㎠) (2,085) (2,000) (1,671)
 Clamping force US ton 132
kN 1,177
 Clamping stroke in 12.6
(mm) (320)
Rotary table diameter (Φ) in 49.6
(mm) (1,260)
Max. mold opening stroke in 24.4
(mm) (620)
 Mold thickness in 11.8
(mm) (300)
 Machine dimension (L x W x H) ft 5.2 x 8.9 x 14.5
(m) (1.60 x 2.70 x 4.43)
MODEL MVR-150
 Screw type S A B
 Screw diameter in 1.57 1.77 1.97
(mm) (40) (45) (50)
 Injection capacity (PS) oz 7.8 10.0 12.2
(g) (222) (283) (347)
 Max. Injection pressure Mpa 191 160 137
psi 27,650 23,227 19,799
(kg/㎠) (1,944) (1,633) (1,392)
 Clamping force US ton 165
kN 1,471
 Clamping stroke in 12.6
(mm) (320)
Rotary table diameter (Φ) in 49.6
(mm) (1,260)
Max. mold opening stroke in 24.4
(mm) (620)
 Mold thickness in 11.8
(mm) (300)
 Machine dimension (L x W x H) ft 5.2 x 8.9 x 15.2
(m) (1.60 x 2.70 x 4.63)
MODEL MVR-200
 Screw type S A B
 Screw diameter in 1.97 2.17 2.36
(mm) (50) (55) (60)
 Injection capacity (PS) oz 12.2 14.8 17.7
(g) (347) (420) (501)
 Max. Injection pressure Mpa 162 160 138
psi 23,540 23,227 20,055
(kg/㎠) (1,655) (1,633) (1,410)
 Clamping force US ton 220
kN 1,961
 Clamping stroke in 16.5
(mm) (420)
Rotary table diameter (Φ) in 55.1
(mm) (1,400)
Max. mold opening stroke in 30.3
(mm) (770)
 Mold thickness in 13.8
(mm) (350)
 Machine dimension (L x W x H) ft 6.1 x 9.4 x 16.1
(m) (1.85 x 2.85 x 4.92)
MODEL MVR-250
 Screw type S A B
 Screw diameter in 2.36 2.56 2.76
(mm) (60) (65) (70)
 Injection capacity (PS) oz 12.4 14.8 17.7
(g) (351) (420) (501)
 Max. Injection pressure Mpa 162 160 138
psi 23,540 23,227 20,055
(kg/㎠) (1,655) (1,633) (1,410)
 Clamping force US ton 275
kN 2,452
 Clamping stroke in 17.7
(mm) (450)
Rotary table diameter (Φ) in 55.1
(mm) (1,400)
Max. mold opening stroke in 33.5
(mm) (850)
 Mold thickness in 15.7
(mm) (400)
 Machine dimension (L x W x H) ft 6.5 x 10.2 x 16.8
(m) (1.98 x 3.10 x 5.11)
  • All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
  • E-Solution Inc is not responsible for any inaccuracies contained herein.
  • Please consult our sales representative or our head office before designing a mold.
  • Actual plasticizing capacity may vary, depending on the molding conditions and material used.

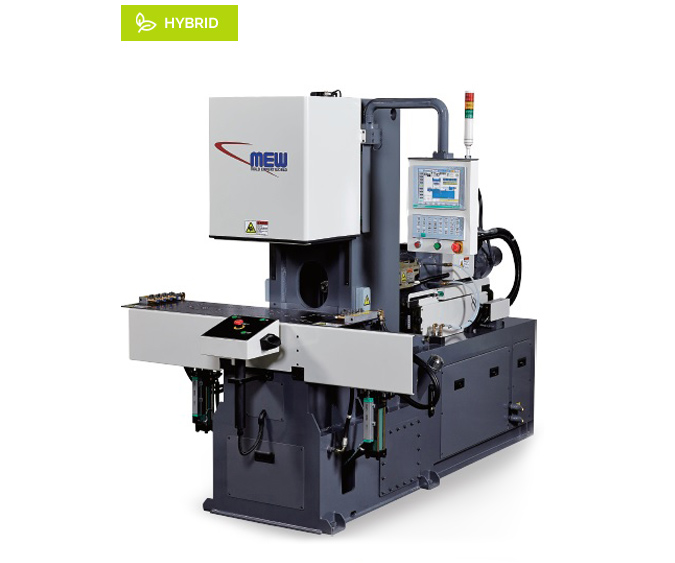

MVP-SL Series

MVP Series
C-frame Slide type
(40 ~ 275 US ton)
  • Energy saving ac servo hybrid
  • Anti wear screw & barrel
  • Up to 39.4 inch/sec injection speed (Optional)
  • Slide table moving by AC servo motor
  • Nozzle shut off type
DOWNLOAD CATALOG >
MODEL MVP-35SL
 Screw type S A B
 Screw diameter in 0.71 0.98 1.10
(mm) (18) (25) (28)
 Injection capacity (PS) oz 1.8 2.5 3.0
(g) (51) (71) (84)
 Max. Injection pressure Mpa 186 187 167
psi 27,039 28,546 24,194
(kg/㎠) (1,901) (2,007) (1,701)
 Clamping force US ton 39
kN 343
 Clamping stroke in 8.7
(mm) (220)
Max. mold opening stroke in 15.0
(mm) (380)
 Mold thickness in 6.6
(mm) (160)
 Machine dimension (L x W x H) ft 3.61 x 6.6 x 6.2
(m) (1.10 x 2.00 x 1.90)
MODEL MVP-55SL
 Screw type S A B
 Screw diameter in 1.10 1.26 1.38
(mm) (28) (32) (35)
 Injection capacity (PS) oz 2.7 3.4 4.2
(g) (77) (97) (119)
 Max. Injection pressure Mpa 185 194 166
psi 26,768 28,191 24,109
(kg/㎠) (1,882) (1,982) (1,695)
 Clamping force US ton 61
kN 539
 Clamping stroke in 10.2
(mm) (260)
Max. mold opening stroke in 176.3
(mm) (440)
 Mold thickness in 7.1
(mm) (180)
 Machine dimension (L x W x H) ft 4.2 x 7.2 x 6.9
(m) (1.28 x 2.20 x 2.10)
MODEL MVP-85SL
 Screw type S A B
 Screw diameter in 1.38 1.57 1.77
(mm) (35) (40) (45)
 Injection capacity (PS) oz 6.0 7.9 10.0
(g) (171) (225) (280)
 Max. Injection pressure Mpa 240 188 148
psi 34,847 27,337 21,491
(kg/㎠) (2,450) (1,922) (1,511)
 Clamping force US ton 94
kN 834
 Clamping stroke in 11.0
(mm) (280)
Max. mold opening stroke in 19.7
(mm) (500)
 Mold thickness in 8.7
(mm) (220)
 Machine dimension (L x W x H) ft 4.6 x 8.2 x 7.4
(m) (1.40 x 2.50 x 2.25)
MODEL MVP-100SL
 Screw type S A B
 Screw diameter in 1.57 1.77 1.97
(mm) (40) (45) (50)
 Injection capacity (PS) oz 6.5 9.0 11.0
(g) (184) (254) (311)
 Max. Injection pressure Mpa 231 177 148
psi 33,496 25,645 21,449
(kg/㎠) (2,355) (1,803) (1,508)
 Clamping force US ton 110
kN 981
 Clamping stroke in 11.0
(mm) (280)
Max. mold opening stroke in 19.7
(mm) (500)
 Mold thickness in 8.7
(mm) (220)
 Machine dimension (L x W x H) ft 4.6 x 8.2 x 7.4
(m) (1.40 x 2.50 x 2.25)
MODEL MVP-120SL
 Screw type S A B
 Screw diameter in 1.77 1.97 2.17
(mm) (45) (50) (55)
 Injection capacity (PS) oz 7.9 10.0 12.6
(g) (224) (280) (356)
 Max. Injection pressure Mpa 226 184 148
psi 32,813 26,655 21,534
(kg/㎠) (2,307) (1,874) (1,514)
 Clamping force US ton 132
kN 1,177
 Clamping stroke in 13.8
(mm) (350)
Max. mold opening stroke in 25.6
(mm) (650)
 Mold thickness in 11.8
(mm) (300)
 Machine dimension (L x W x H) ft 5.3 x 9.0 x 7.9
(m) (1.63 x 2.75 x 2.40)
MODEL MVP-150SL
 Screw type S A B
 Screw diameter in 1.97 2.17 2.36
(mm) (50) (55) (60)
 Injection capacity (PS) oz 10.0 12.8 15.1
(g) (281) (364) (428)
 Max. Injection pressure Mpa 179 171 152
psi 26,000 24,820 22,103
(kg/㎠) (1,828) (1,745) (1,554)
 Clamping force US ton 165
kN 1,471
 Clamping stroke in 14.2
(mm) (360)
Max. mold opening stroke in 26.8
(mm) (680)
 Mold thickness in 12.6
(mm) (320)
 Machine dimension (L x W x H) ft 5.3 x 9.0 x 8.2
(m) (1.63 x 2.75 x 2.50)
MODEL MVP-200SL
 Screw type S A B
 Screw diameter in 2.17 2.36 2.56
(mm) (55) (60) (65)
 Injection capacity (PS) oz 12.4 15.2 17.7
(g) (351) (431) (502)
 Max. Injection pressure Mpa 180 151 139
psi 26,086 21,961 20,069
(kg/㎠) (1,834) (1,544) (1,411)
 Clamping force US ton 220
kN 1,961
 Clamping stroke in 15.7
(mm) (400)
Max. mold opening stroke in 29.5
(mm) (750)
 Mold thickness in 13.8
(mm) (350)
 Machine dimension (L x W x H) ft 6.1 x 9.8 x 9.4
(m) (1.85 x 3.00 x 2.85)
MODEL MVP-250SL
 Screw type S A B
 Screw diameter in 2.36 2.56 2.76
(mm) (60) (65) (70)
 Injection capacity (PS) oz 12.4 15.2 17.7
(g) (352) (432) (503)
 Max. Injection pressure Mpa 173 154 146
psi 25,047 22,288 21,122
(kg/㎠) (1,761) (1,567) (1,485)
 Clamping force US ton 275
kN 2,452
 Clamping stroke in 15.7
(mm) (400)
Max. mold opening stroke in 29.5
(mm) (750)
 Mold thickness in 13.8
(mm) (350)
 Machine dimension (L x W x H) ft 6.1 x 10.2 x 9.5
(m) (1.85 x 3.10 x 2.90)
  • All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
  • E-Solution Inc is not responsible for any inaccuracies contained herein.
  • Please consult our sales representative or our head office before designing a mold.
  • Actual plasticizing capacity may vary, depending on the molding conditions and material used.
