Hybrid retrofit

Servo Motor

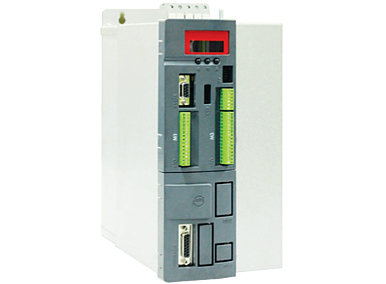

Servo Drive
Servo Pump

Drastic Reduction in Power Usage: 35-75% saving compared to Hydraulic
Top Quality: Highly responsive (40ms), High reproducibility
Low Noise: Over 10dB in reduction compared to Hydraulic
Low Temperature: Lowers oil operating temperature by at least 18F, extending the life of machine & oil.
Environmentally Friendly: Reduces Co2 gas emission

Clamp Force(Ton)	Clamp Method	Product Weight (oz)	Cycle (sec)	Power Consumption		Power Saving(Kw)	Power Saving(%)	Cost Reduction ( per year)
Clamp Force(Ton)	Clamp Method	Product Weight (oz)	Cycle (sec)	Before Retrofit	After Retrofit	Power Saving(Kw)	Power Saving(%)	Cost Reduction ( per year)
L Brand 1300	2 Plate	52.38	77.0	72.9	33.2	39.7	54.4	$52,887.12
W Brand 900	2 Plate	27.57	72.6	64.1	29.4	34.7	54.1	$46,225.60
W Brand 650	Toggle	19.96	58.0	50.3	20.3	30.0	59.7	$39,965.08
D Brand 450	Toggle	25.00	50.0	46.1	20.3	25.8	56.0	$34,369.96
H Brand 350	Toggle	4.42	57.5	19.5	10.2	9.3	47.7	$12,389.17
H Brand 250	Toggle	8.58	55.7	20.1	9.2	10.9	54.2	$14,520.65
H Brand 150	Toggle	5.47	49.2	13.0	5.9	7.1	54.6	$9,458.39

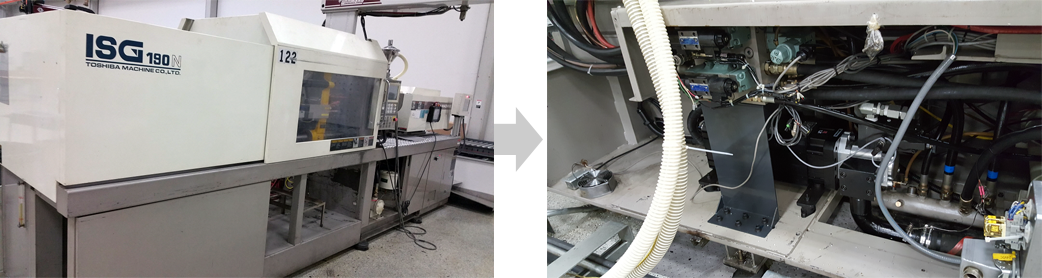

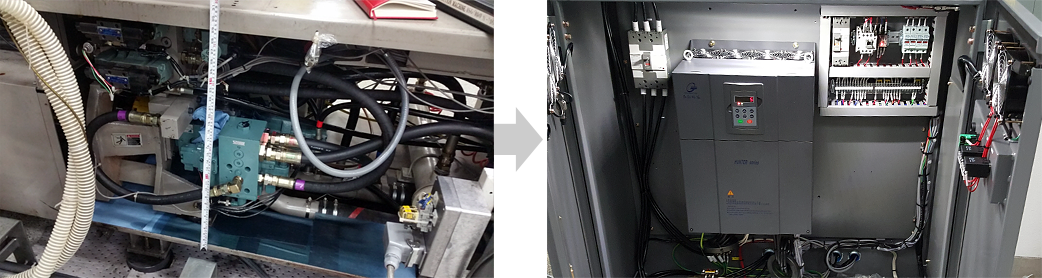

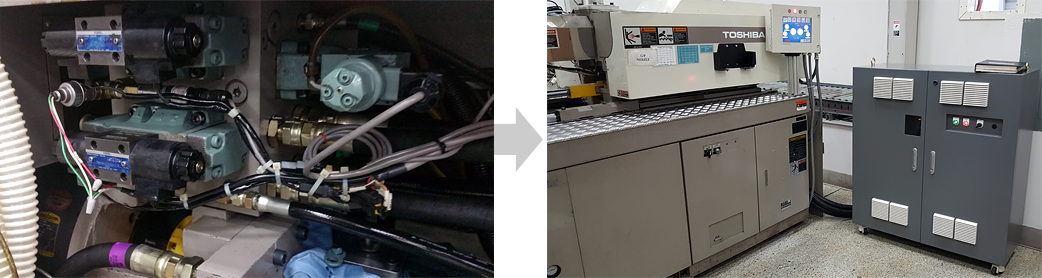

Before & After
