Cost effective toggle
(100~440 US ton)
(100~440 US ton)
- Energy saving hybrid

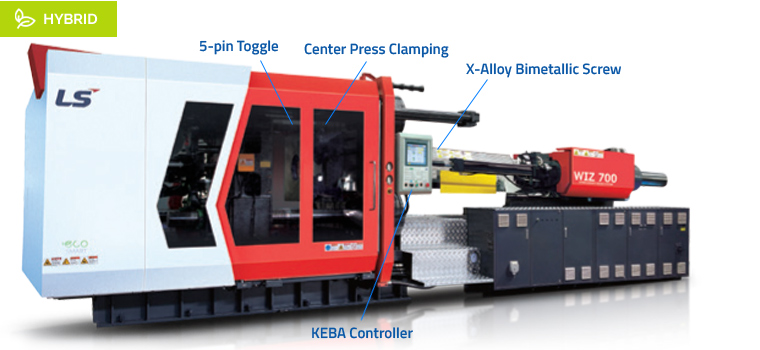

- 5-point toggle high speed clamping system
- 2.5 sec dry cycle time (180 ton)
- Center press clamping system
- Closed-loop pressure control
Designed and manufactured by LS Mtron, WIZ-T Series provides low power consumption and optimized energy saving experience via high performance servo motor and KEBA controller's optimal feedback on fluid and pressure.
| MODEL | WIZ-100T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.10 | 1.26 | 1.42 | ||
| (mm) | (28) | (32) | (36) | |||
| Injection capacity (PS) | oz | 2.86 | 3.74 | 4.73 | ||
| (g) | (81) | (106) | (134) | |||
| Max. Injection pressure | Mpa | 243 | 186 | 147 | ||
| psi | 35,274 | 26,996 | 21,335 | |||
| (kg/㎠) | (2,480) | (1,898) | (1,500) | |||
| Clamping force | US ton | 99 | ||||
| kN | 897 | |||||
| Clamping stroke | in | 12.6 | ||||
| (mm) | (320) | |||||
| Tie bar clearance (H x V) | in | 14.2 x 14.2 | ||||
| (mm) | (360 x 360) | |||||
| Platen dimension (H x V) | in | 21.3 x 21.3 | ||||
| (mm) | (540 x 540) | |||||
| Daylight | in | 26.4 | ||||
| (mm) | (670) | |||||
| Mold thickness | in | 5.5 ~ 13.8 | ||||
| (mm) | (140 ~ 350) | |||||
| Machine dimension (L x W x H) | ft | 12.5 x 3.9 x 5.6 | ||||
| (m) | (3.81 x 1.19 x 1.70) | |||||
| MODEL | WIZ-120T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.26 | 1.42 | 1.57 | ||
| (mm) | (32) | (36) | (40) | |||
| Injection capacity (PS) | oz | 4.23 | 5.36 | 6.60 | ||
| (g) | (120) | (152) | (187) | |||
| Max. Injection pressure | Mpa | 244 | 200 | 157 | ||
| psi | 35,445 | 29,006 | 22,729 | |||
| (kg/㎠) | (2,492) | (1,969) | (1,595) | |||
| Clamping force | US ton | 121 | ||||
| kN | 1,096 | |||||
| Clamping stroke | in | 13.8 | ||||
| (mm) | (350) | |||||
| Tie bar clearance (H x V) | in | 16.1 x 16.1 | ||||
| (mm) | (410 x 410) | |||||
| Platen dimension (H x V) | in | 23.8 x 23.8 | ||||
| (mm) | (605 x 605) | |||||
| Daylight | in | 30.1 | ||||
| (mm) | (765) | |||||
| Mold thickness | in | 5.9 ~ 16.3 | ||||
| (mm) | (150 ~ 415) | |||||
| Machine dimension (L x W x H) | ft | 13.6 x 3.9 x 6.6 | ||||
| (m) | (4.15 x 1.19 x 2.00) | |||||
| MODEL | WIZ-150T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.42 | 1.57 | 1.77 | ||
| (mm) | (36) | (40) | (45) | |||
| Injection capacity (PS) | oz | 6.60 | 8.15 | 10.34 | ||
| (g) | (187) | (231) | (293) | |||
| Max. Injection pressure | Mpa | 232 | 188 | 149 | ||
| psi | 33,709 | 27,309 | 21,577 | |||
| (kg/㎠) | (2,370) | (1,920) | (1,517) | |||
| Clamping force | US ton | 154 | ||||
| kN | 1,395 | |||||
| Clamping stroke | in | 15.0 | ||||
| (mm) | (380) | |||||
| Tie bar clearance (H x V) | in | 18.1 x 18.1 | ||||
| (mm) | (460 x 460) | |||||
| Platen dimension (H x V) | in | 26.4 x 26.4 | ||||
| (mm) | (670 x 665) | |||||
| Daylight | in | 33.9 | ||||
| (mm) | (860) | |||||
| Mold thickness | in | 6.3 ~ 18.9 | ||||
| (mm) | (160 ~ 480) | |||||
| Machine dimension (L x W x H) | ft | 14.8 x 3.9 x 6.6 | ||||
| (m) | (4.15 x 1.19 x 2.00) | |||||
| MODEL | WIZ-150T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.57 | 1.77 | 1.97 | ||
| (mm) | (40) | (45) | (50) | |||
| Injection capacity (PS) | oz | 9.07 | 11.46 | 14.14 | ||
| (g) | (257) | (325) | (401) | |||
| Max. Injection pressure | Mpa | 236 | 186 | 151 | ||
| psi | 34,207 | 27,024 | 21,890 | |||
| (kg/㎠) | (2,405) | (1,900) | (1,539) | |||
| Clamping force | US ton | 176 | ||||
| kN | 1,594 | |||||
| Clamping stroke | in | 17.1 | ||||
| (mm) | (435) | |||||
| Tie bar clearance (H x V) | in | 18.9 x 18.9 | ||||
| (mm) | (480 x 480) | |||||
| Platen dimension (H x V) | in | 28.0 x 28.0 | ||||
| (mm) | (710 x 710) | |||||
| Daylight | in | 37.6 | ||||
| (mm) | (955) | |||||
| Mold thickness | in | 7.1 ~ 20.5 | ||||
| (mm) | (180 ~ 520) | |||||
| Machine dimension (L x W x H) | ft | 15.9 x 4.3 x 6.6 | ||||
| (m) | (5.20 x 1.30 x 2.00) | |||||
| MODEL | WIZ-220T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.77 | 1.97 | 2.17 | ||
| (mm) | (45) | (50) | (55) | |||
| Injection capacity (PS) | oz | 12.80 | 15.80 | 19.12 | ||
| (g) | (363) | (448) | (542) | |||
| Max. Injection pressure | Mpa | 238 | 193 | 159 | ||
| psi | 34,563 | 27,992 | 23,127 | |||
| (kg/㎠) | (2,430) | (1,968) | (1,626) | |||
| Clamping force | US ton | 220 | ||||
| kN | 1,993 | |||||
| Clamping stroke | in | 19.5 | ||||
| (mm) | (495) | |||||
| Tie bar clearance (H x V) | in | 20.9 x 20.9 | ||||
| (mm) | (530 x 530) | |||||
| Platen dimension (H x V) | in | 31.1 x 31.1 | ||||
| (mm) | (790 x 790) | |||||
| Daylight | in | 40.4 | ||||
| (mm) | (1,025) | |||||
| Mold thickness | in | 7.9 ~ 20.9 | ||||
| (mm) | (200 ~ 530) | |||||
| Machine dimension (L x W x H) | ft | 17.1 x 5.2 x 7.3 | ||||
| (m) | (5.22 x 1.60 x 2.21) | |||||
| MODEL | WIZ-275T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.77 | 1.97 | 2.17 | ||
| (mm) | (45) | (50) | (55) | |||
| Injection capacity (PS) | oz | 12.80 | 15.80 | 19.12 | ||
| (g) | (363) | (448) | (542) | |||
| Max. Injection pressure | Mpa | 238 | 193 | 159 | ||
| psi | 34,563 | 27,992 | 23,127 | |||
| (kg/㎠) | (2,430) | (1,968) | (1,626) | |||
| Clamping force | US ton | 275 | ||||
| kN | 2,491 | |||||
| Clamping stroke | in | 21.3 | ||||
| (mm) | (540) | |||||
| Tie bar clearance (H x V) | in | 22.8 x 22.8 | ||||
| (mm) | (580 x 580) | |||||
| Platen dimension (H x V) | in | 34.3 x 34.3 | ||||
| (mm) | (870 x 870) | |||||
| Daylight | in | 43.7 | ||||
| (mm) | (1,110) | |||||
| Mold thickness | in | 7.9 ~ 22.4 | ||||
| (mm) | (200 ~ 570) | |||||
| Machine dimension (L x W x H) | ft | 19.1 x 5.2 x 7.3 | ||||
| (m) | (5.82 x 1.60 x 2.24) | |||||
| MODEL | WIZ-310T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.97 | 2.17 | 2.36 | ||
| (mm) | (50) | (55) | (60) | |||
| Injection capacity (PS) | oz | 19.44 | 23.53 | 27.97 | ||
| (g) | (551) | (667) | (793) | |||
| Max. Injection pressure | Mpa | 221 | 183 | 153 | ||
| psi | 32,045 | 26,484 | 22,245 | |||
| (kg/㎠) | (2,253) | (1,862) | (1,564) | |||
| Clamping force | US ton | 308 | ||||
| kN | 2,790 | |||||
| Clamping stroke | in | 23.2 | ||||
| (mm) | (590) | |||||
| Tie bar clearance (H x V) | in | 24.8 x 24.8 | ||||
| (mm) | (630 x 630) | |||||
| Platen dimension (H x V) | in | 36.6 x 36.6 | ||||
| (mm) | (930 x 930) | |||||
| Daylight | in | 48.6 | ||||
| (mm) | (1,235) | |||||
| Mold thickness | in | 7.9 ~ 25.4 | ||||
| (mm) | (200 ~ 645) | |||||
| Machine dimension (L x W x H) | ft | 20.0 x 5.9 x 7.9 | ||||
| (m) | (6.11 x 1.81 x 2.41) | |||||
| MODEL | WIZ-350T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 1.97 | 2.17 | 2.36 | ||
| (mm) | (50) | (55) | (60) | |||
| Injection capacity (PS) | oz | 19.44 | 23.53 | 27.97 | ||
| (g) | (551) | (667) | (793) | |||
| Max. Injection pressure | Mpa | 221 | 183 | 153 | ||
| psi | 32,045 | 26,484 | 22,245 | |||
| (kg/㎠) | (2,253) | (1,862) | (1,564) | |||
| Clamping force | US ton | 352 | ||||
| kN | 3,188 | |||||
| Clamping stroke | in | 26.0 | ||||
| (mm) | (660) | |||||
| Tie bar clearance (H x V) | in | 26.0 x 26.0 | ||||
| (mm) | (680 x 680) | |||||
| Platen dimension (H x V) | in | 40.6 x 40.6 | ||||
| (mm) | (1,030 x 1,030) | |||||
| Daylight | in | 53.5 | ||||
| (mm) | (1,380) | |||||
| Mold thickness | in | 9.8 ~ 28.3 | ||||
| (mm) | (250 ~ 720) | |||||
| Machine dimension (L x W x H) | ft | 23.2 x 6.5 x 7.8 | ||||
| (m) | (7.08 x 1.99 x 2.38) | |||||
| MODEL | WIZ-440T | |||||
| Screw type | Y | A | B | |||
| Screw diameter | in | 2.17 | 2.36 | 2.56 | ||
| (mm) | (55) | (60) | (65) | |||
| Injection capacity (PS) | oz | 25.43 | 30.27 | 35.52 | ||
| (g) | (721) | (858) | (1,007) | |||
| Max. Injection pressure | Mpa | 215 | 180 | 154 | ||
| psi | 31,149 | 26,171 | 22,302 | |||
| (kg/㎠) | (2,190) | (1,840) | (1,568) | |||
| Clamping force | US ton | 440 | ||||
| kN | 3,986 | |||||
| Clamping stroke | in | 28.3 | ||||
| (mm) | (720) | |||||
| Tie bar clearance (H x V) | in | 28.7 x 28.7 | ||||
| (mm) | (730 x 730) | |||||
| Platen dimension (H x V) | in | 43.3 x 43.3 | ||||
| (mm) | (1,100 x 1,100) | |||||
| Daylight | in | 59.1 | ||||
| (mm) | (1,500) | |||||
| Mold thickness | in | 9.8 ~ 30.7 | ||||
| (mm) | (250 ~ 780) | |||||
| Machine dimension (L x W x H) | ft | 24.8 x 6.6 x 8.3 | ||||
| (m) | (7.56 x 2.00 x 2.52) | |||||
- All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
- E-Solution Inc is not responsible for any inaccuracies contained herein.
- Please consult our sales representative or our head office before designing a mold.
- Actual plasticizing capacity may vary, depending on the molding conditions and material used.
