WIZ-E SERIES

20~950 US ton

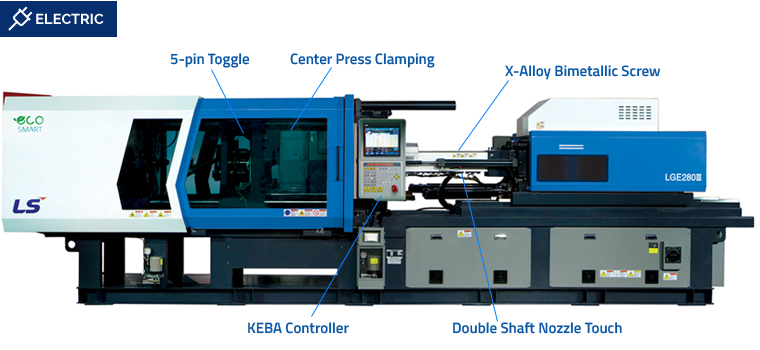

Energy saving all electric
Less maintenance & clean molding

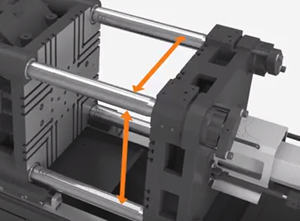

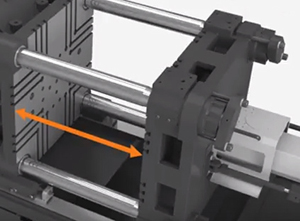

Competitive large tie-bar clearance
5-point toggle high speed clamping system

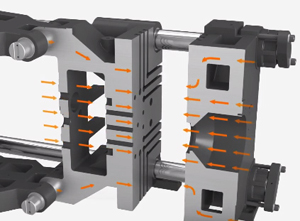

Center press clamping system
Dual nozzle touch cylinder

DOWNLOAD CATALOG >

The WIZ-E Series is the result of years of research and experience in the development and manufacturing of injection molding machines. These exceptional machines combine the benefits of servo electric technology, an injection speed / pressure control algorithm, conformance to safety standadrs, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

MODEL		WIZ-20E
Unit code		i0.33(20T)
Screw type		A	B
Screw diameter	in	0.63	0.71
	(mm)	(16)	(18)
Injection capacity (PS)	oz	0.39	0.49
	(g)	(11)	(14)
Max. Injection pressure	Mpa	265	209
	psi	38,403	30,338
	(kg/㎠)	(2,700)	(2,133)
Clamping force	US ton	19.8
	kN	177
Clamping stroke	in	7.9
	(mm)	(200)
Tie bar clearance (H x V)	in	10.2 x 10.2
	(mm)	(260 x 260)
Platen dimension (H x V)	in	15.0 x 15.7
	(mm)	(380 x 400)
Daylight	in	17.7
	(mm)	(450)
Mold thickness	in	4.7 ~ 9.8
	(mm)	(120 ~ 250)
Machine dimension (L x W x H)	ft	9.7 x 3.1 x 4.5
	(m)	(2.95 x 0.94 x 1.37)

MODEL		WIZ-35E
Unit code		i0.33(20T)		i0.6(35T)
Screw type		A	B	Y	A	B
Screw diameter	in	0.63	0.71	0.71	0.79	0.87
	(mm)	(16)	(18)	(18)	(20)	(22)
Injection capacity (PS)	oz	0.39	0.49	0.74	0.91	1.09
	(g)	(11)	(14)	(20)	(25)	(30)
Max. Injection pressure	Mpa	265	209
	psi	38,403	30,338
	(kg/㎠)	(2,700)	(2,133)
Clamping force	US ton	33.1
	kN	294
Clamping stroke	in	9.1
	(mm)	(230)
Tie bar clearance (H x V)	in	10.2 x 10.2
	(mm)	(260 x 260)
Platen dimension (H x V)	in	15.0 x 15.7
	(mm)	(380 x 400)
Daylight	in	18.9
	(mm)	(480)
Mold thickness	in	4.7 ~ 9.8
	(mm)	(120 ~ 250)
Machine dimension (L x W x H)	ft	10.7 x 3.8 x 4.5
	(m)	(3.25 x 0.94 x 1.37)

MODEL		WIZ-55E
Unit code		i1.2(55T)			i1.7(90T)
Screw type		Y	A	B	Y	A	B
Screw diameter	in	0.87	0.98	1.1	0.98	1.1	1.26
	(mm)	(22)	(25)	(28)	(25)	(28)	(32)
Injection capacity (PS)	oz	1.3	1.9	2.4	2.2	2.8	3.7
	(g)	(38)	(54)	(68)	(63)	(79)	(104)
Max. Injection pressure	Mpa	253	196	187	246	196	150
	psi	36,696	28,447	27,167	35,701	28,447	21,762
	(kg/㎠)	(2,580)	(2,000)	(1,910)	(2,510)	(2,000)	(1,530)
Clamping force	US ton	55.1
	kN	490
Clamping stroke	in	10.6
	(mm)	(270)
Tie bar clearance (H x V)	in	13.2 x 13.2
	(mm)	(335 x 335)
Platen dimension (H x V)	in	18.5 x 18.9
	(mm)	(470 x 480)
Daylight	in	23.2
	(mm)	(590)
Mold thickness	in	5.9 ~ 12.6
	(mm)	(150 ~ 320)
Machine dimension (L x W x H)	ft	12.0 x 3.5 x 4.8			12.8 x 3.5 x 4.8
	(m)	(3.67 x 1.06 x 1.46)			(3.90 x 1.06 x 1.46)

MODEL		WIZ-90E
Unit code		i1.7(90T)			i2.4(120T)
Screw type		Y	A	B	Y	A	B
Screw diameter	in	0.98	1.1	1.26	1.1	1.26	1.42
	(mm)	(25)	(28)	(32)	(28)	(32)	(36)
Injection capacity (PS)	oz	2.2	2.8	3.7	2.8	4.2	5.3
	(g)	(63)	(79)	(104)	(79)	(118)	(150)
Max. Injection pressure	Mpa	246	196	150	236	181	143
	psi	35,701	28,447	21,762	34,278	26,313	20,766
	(kg/㎠)	(2,510)	(2,000)	(1,530)	(2,410)	(1,850)	(1,450)
Clamping force	US ton	88.2
	kN	784
Clamping stroke	in	12.6
	(mm)	(320)
Tie bar clearance (H x V)	in	16.4 x 14.6
	(mm)	(420 x 370)
Platen dimension (H x V)	in	24.2 x 21.9
	(mm)	(615 x 555)
Daylight	in	26.4
	(mm)	(670)
Mold thickness	in	5.9 ~ 13.8
	(mm)	(150 ~ 350)
Machine dimension (L x W x H)	ft	13.7 x 3.9 x 5.5			15.0 x 3.9 x 5.5
	(m)	(4.17 x 1.20 x 1.67)			(4.57 x 1.20 x 1.67)

MODEL		WIZ-120E
Unit code		i1.2(120T)	i1.9(120T)	i2.4(120T)			i3.6(190T)
Screw type		YYY	YY	Y	A	B	Y	A	B
Screw diameter	in	0.87	0.98	1.1	1.26	1.42	1.26	1.42	1.58
Screw diameter	(mm)	(22)	(25)	(28)	(32)	(36)	(32)	(36)	(40)
Injection capacity (PS)	oz	1.3	2.2	2.8	4.2	5.3	4.2	6	7.3
Injection capacity (PS)	(g)	(38)	(63)	(79)	(118)	(150)	(118)	(169)	(208)
Max. Injection pressure	Mpa	294	275	236	181	143	242	191	155
	psi	42,670	39,825	34,278	26,313	20,766	35,132	27,736	22,473
	(kg/㎠)	(3,000)	(2,800)	(2,410)	(1,850)	(1,450)	(2,470)	(1,950)	(1,580)
Clamping force	US ton	121.3
Clamping force	kN	1,080
Clamping stroke	in	13.8
Clamping stroke	(mm)	(350)
Tie bar clearance (H x V)	in	18.5 x 16.5
Tie bar clearance (H x V)	(mm)	(470 x 420)
Platen dimension (H x V)	in	26.8 x 24.8
Platen dimension (H x V)	(mm)	(680 x 630)
Daylight	in	29.9
Daylight	(mm)	(760)
Mold thickness	in	7.9 ~ 16.1
Mold thickness	(mm)	(200 ~ 410)
Machine dimension (L x W x H)	ft	16.1 x 4.3 x 5.5					16.8 x 4.3 x 5.5
Machine dimension (L x W x H)	(m)	(4.92 x 1.31 x 1.68)					(5.12 x 1.31 x 1.68)

MODEL			WIZ-190E
Unit code			i2.4(170T)	i3.6(190T)			i4.7(170T)	i5.8(220T)
Screw type			YY	Y	A	B	C	Y	A	B
Screw diameter		in	1.1	1.26	1.42	1.58	1.77	1.42	1.58	1.77
Screw diameter		(mm)	(28)	(32)	(36)	(40)	(45)	(36)	(40)	(45)
Injection capacity (PS)		oz	3.2	4.2	6	7.3	9.3	6	9	11.4
Injection capacity (PS)		(g)	(91)	(118)	(169)	(208)	(263)	(169)	(254)	(322)
Max. Injection pressure		Mpa	242	242	191	155	163	254	206	163
		psi	35131	35131	27735	22473	23611	36838	29869	23611
		(kg/㎠)	(2,470)	(2,470)	(1,950)	(1,580)	(1,660)	(2,590)	(2,100)	(1,660)
Clamping force		US ton	187
Clamping force		kN	1,666
Clamping stroke		in	18.1
Clamping stroke		(mm)	(460)
Tie bar clearance (H x V)		in	22.4 x 20.5
(mm)	(570 x 520)
Platen dimension (H x V)		in	33.1 x 31.1
Platen dimension (H x V)		(mm)	(840 x 790)
Daylight		in	37.8
Daylight		(mm)	(960)
Mold thickness		in	9.8 ~ 19.7
Mold thickness		(mm)	(250 ~ 500)
Machine dimension (L x W x H)		ft	17.8 x 4.9 x 6.1				19.1 x 4.9 x 6.1
Machine dimension (L x W x H)		(m)	(5.42 x 1.5 x 1.85)				(5.82 x 1.50 x 1.85)

MODEL		WIZ-240E
Unit code		i3.8(240T)	i5.8(240T)			i8.6(310T)			i14(390T)
Screw type		YY	Y	A	B	Y	A	B	Y	A	B
Screw diameter	in	1.26	1.42	1.58	1.77	1.58	1.77	1.58	1.97	2.17	2.36
Screw diameter	(mm)	(32)	(36)	(40)	(45)	(40)	(45)	(40)	(50)	(55)	(60)
Injection capacity (PS)	oz	4.2	6.0	9.0	11.4	9.8	12.4	7.3	17.8	21.6	25.7
Injection capacity (PS)	(g)	(118)	(169)	(254)	(322)	(277)	(351)	(208)	(506)	(612)	(728)
Max. Injection pressure	Mpa	294	254	206	163	275	221	181	245	206	172
	psi	42,670	36838	29869	23611	39,825	32,003	26,313	35,558	29,869	24,891
	(kg/㎠)	(2,998)	(2,590)	(2,100)	(1,660)	(2,800)	(2,250)	(1,846)	(2,500)	(2,100)	(1,750)
Clamping force	US ton	242
Clamping force	kN	2,157
Clamping stroke	in	22.0
Clamping stroke	(mm)	(560)
Tie bar clearance (H x V)	in	24.4 x 24.4
Tie bar clearance (H x V)	(mm)	(620 x 620)
Platen dimension (H x V)	in	36.2 x 36.2
Platen dimension (H x V)	(mm)	(920 x 920)
Daylight	in	43.7
Daylight	(mm)	(1,110)
Mold thickness	in	10.6 ~ 21.7
Mold thickness	(mm)	(270 ~ 550)
Machine dimension (L x W x H)	ft	20.6 x 5.4 x 6.4				21.6 x 5.4 x 6.4			23.6 x 6.1 x 6.7
Machine dimension (L x W x H)	(m)	(6.28 x 1.65 x 1.95)				(6.58 x 1.65 x 1.95)			(7.18 x 1.86 x 2.05)

MODEL		WIZ-310E
Unit code		i3.6(190T)			i5.8(240T)			i8.6(310T)			i9.4(310T)	i14(390T)
Screw type		Y	A	B	Y	A	B	Y	A	B	C	Y	A	B
Screw diameter	in	1.26	1.42	1.58	1.42	1.58	1.77	1.58	1.77	1.58	2.17	1.97	2.17	2.36
Screw diameter	(mm)	(32)	(36)	(40)	(36)	(40)	(45)	(40)	(45)	(40)	(55)	(50)	(55)	(60)
Injection capacity (PS)	oz	4.2	6.0	7.3	6.0	9.0	11.4	9.8	12.4	7.3	21.6	17.8	21.6	25.7
Injection capacity (PS)	(g)	(118)	(169)	(208)	(169)	(254)	(322)	(277)	(351)	(208)	(612)	(506)	(612)	(728)
Max. Injection pressure	Mpa	242	191	155	254	206	163	275	221	181	162	245	206	172
	psi	35,132	27,736	22473	36838	29869	23611	39,825	32,003	26,313	23,469	35,558	29,869	24,891
	(kg/㎠)	(2,470)	(1,950)	(1,580)	(2,590)	(2,100)	(1,660)	(2,800)	(2,250)	(1,846)	(1,652)	(2,500)	(2,100)	(1,750)
Clamping force	US ton	308
Clamping force	kN	2,746
Clamping stroke	in	24.4
Clamping stroke	(mm)	(620)
Tie bar clearance (H x V)	in	28.3 x 28.3
Tie bar clearance (H x V)	(mm)	(720 x 720)
Platen dimension (H x V)	in	40.9 x 40.9
Platen dimension (H x V)	(mm)	(1,040 x 1,040)
Daylight	in	49.2
Daylight	(mm)	(1,250)
Mold thickness	in	11.8 ~ 24.8
Mold thickness	(mm)	(300 ~ 630)
Machine dimension (L x W x H)	ft	22.6 x 5.9 x 6.7										23.6 x 5.9 x 6.7
Machine dimension (L x W x H)	(m)	(6.89 x 1.80 x 2.04)										(7.19 x 1.80 x 2.04)

MODEL		WIZ-390E
Unit code		i14(390T)			i16.7(440T)			i15.6(440T)
Screw type		Y	A	B	Y	A	B	C
Screw diameter	in	1.97	2.17	2.36	2.17	2.36	2.56	2.76
Screw diameter	(mm)	(50)	(55)	(60)	(55)	(60)	(65)	(70)
Injection capacity (PS)	oz	17.8	21.6	25.7	20.8	24.8	29.1	33.7
Injection capacity (PS)	(g)	(506)	(612)	(728)	(590)	(702)	(824)	(956)
Max. Injection pressure	Mpa	245	206	172	255	216	181	147
	psi	35,558	29,869	24,891	36,981	31,291	26,313	21,335
	(kg/㎠)	(2,500)	(2,100)	(1,750)	(2,600)	(2,200)	(1,850)	(1,500)
Clamping force	US ton	385
Clamping force	kN	3,430
Clamping stroke	in	28.3
Clamping stroke	(mm)	(720)
Tie bar clearance (H x V)	in	32.3 x 32.3
Tie bar clearance (H x V)	(mm)	(820 x 820)
Platen dimension (H x V)	in	45.3 x 45.3
Platen dimension (H x V)	(mm)	(1,150 x 1,150)
Daylight	in	55.1
Daylight	(mm)	(1420)
Mold thickness	in	13.8 ~ 27.6
Mold thickness	(mm)	(350 ~ 700)
Machine dimension (L x W x H)	ft	24.7 x 6.5 x 7.4			25.7 x 6.5 x 7.4			26.8 x 6.5 x 7.4
Machine dimension (L x W x H)	(m)	(7.54 x 1.98 x 2.25)			(7.84 x 1.98 x 2.25)			(8.17 x 1.98 x 2.25)

MODEL		WIZ-440E
Unit code		i14(390T)			i16.7(440T)			i15.6(440T)
Screw type		Y	A	B	Y	A	B	C
Screw diameter	in	1.97	2.17	2.36	2.17	2.36	2.56	2.76
Screw diameter	(mm)	(50)	(55)	(60)	(55)	(60)	(65)	(70)
Injection capacity (PS)	oz	17.8	21.6	25.7	20.8	24.8	29.1	33.7
Injection capacity (PS)	(g)	(506)	(612)	(728)	(590)	(702)	(824)	(956)
Max. Injection pressure	Mpa	245	206	172	255	216	181	147
	psi	35,558	29,869	24,891	36,981	31,291	26,313	21,335
	(kg/㎠)	(2,500)	(2,100)	(1,750)	(2,600)	(2,200)	(1,850)	(1,500)
Clamping force	US ton	440
Clamping force	kN	3,927
Clamping stroke	in	30.3
Clamping stroke	(mm)	(770)
Tie bar clearance (H x V)	in	32.3 x 32.3
Tie bar clearance (H x V)	(mm)	(830 x 830)
Platen dimension (H x V)	in	45.3 x 45.3
Platen dimension (H x V)	(mm)	(1,150 x 1,150)
Daylight	in	59.8
Daylight	(mm)	(1520)
Mold thickness	in	13.8 ~ 29.5
Mold thickness	(mm)	(350 ~ 750)
Machine dimension (L x W x H)	ft	25.9 x 6.9 x 7.5						27.2 x 6.9 x 7.5
Machine dimension (L x W x H)	(m)	(7.88 x 1.98 x 2.25)						(8.28 x 1.98 x 2.25)

MODEL		WIZ-500E
Unit code		i16.7(440T)			i15.6(440T)	i24.8(500T)			i37(610T)			i45(610T)
Screw type		Y	A	B	C	Y	A	B	Y	A	B	C
Screw diameter	in	2.17	2.36	2.56	2.76	2.56	2.76	2.95	2.76	2.95	3.35	3.54
Screw diameter	(mm)	(55)	(60)	(65)	(70)	(65)	(70)	(75)	(70)	(75)	(85)	(90)
Injection capacity (PS)	oz	20.8	24.8	29.1	33.7	37.1	43.1	49.5	52.5	60.2	77.4	87.7
Injection capacity (PS)	(g)	(590)	(702)	(824)	(956)	(1,053)	(1,221)	(1,402)	(1,487)	(1,707)	(2,193)	(2,458)
Max. Injection pressure	Mpa	255	216	181	147	226	196	172	226	196	157	167
	psi	36,981	31,291	26,313	21,335	32,714	28,447	24,891	32,714	28,447	22,757	24,180
	(kg/㎠)	(2,600)	(2,200)	(1,850)	(1,500)	(2,300)	(2,000)	(1,750)	(2,300)	(2,000)	(1,600)	(1,700)
Clamping force	US ton	495
Clamping force	kN	4,420
Clamping stroke	in	31.5
Clamping stroke	(mm)	(800)
Tie bar clearance (H x V)	in	32.7 x 32.7
Tie bar clearance (H x V)	(mm)	(830 x 830)
Platen dimension (H x V)	in	47.2 x 47.2
Platen dimension (H x V)	(mm)	(1,335 x 1,335)
Daylight	in	61.0
Daylight	(mm)	(1,550)
Mold thickness	in	13.8 ~ 29.5
Mold thickness	(mm)	(350 ~ 750)
Machine dimension (L x W x H)	ft	30.5 x 7.2 x 7.1			31.8 x 7.2 x 7.1	32.1 x 7.2 x 7.1
Machine dimension (L x W x H)	(m)	(9.31 x 2.19 x 2.17)			(9.70 x 2.19 x 2.17)	(9.78 x 2.19 x 2.17)

MODEL		WIZ-610E
Unit code		i24.8(500T)			i37(610T)			i45(610T)	i63.6(720T)
Screw type		Y	A	B	Y	A	B	C	Y	A	B
Screw diameter	in	2.56	2.76	2.95	2.76	2.95	3.35	3.54	3.35	3.54	3.94
Screw diameter	(mm)	(65)	(70)	(75)	(70)	(75)	(85)	(90)	(85)	(90)	(100)
Injection capacity (PS)	oz	37.1	43.1	49.5	52.5	60.2	77.4	87.7	92.1	103.2	127.5
Injection capacity (PS)	(g)	(1,053)	(1,221)	(1,402)	(1,487)	(1,707)	(2,193)	(2,458)	(2,610)	(2,926)	(3,613)
Max. Injection pressure	Mpa	226	196	172	226	196	157	167	226	196	157
	psi	32,714	28,447	24,891	32,714	28,447	22,757	24,180	32,714	28,447	22,757
	(kg/㎠)	(2,300)	(2,000)	(1,750)	(2,300)	(2,000)	(1,600)	(1,700)	(2,300)	(2,000)	(1,600)
Clamping force	US ton	605
Clamping force	kN	5,390
Clamping stroke	in	35.4
Clamping stroke	(mm)	(900)
Tie bar clearance (H x V)	in	35.4 x 35.4
Tie bar clearance (H x V)	(mm)	(900 x 900)
Platen dimension (H x V)	in	52.6 x 52.6
Platen dimension (H x V)	(mm)	(1,335 x 1,335)
Daylight	in	66.9
Daylight	(mm)	(1,700)
Mold thickness	in	15.7 ~ 31.5
Mold thickness	(mm)	(400 ~ 800)
Machine dimension (L x W x H)	ft	32.8 x 7.8 x 7.1							33.8 x 7.8 x 7.1
Machine dimension (L x W x H)	(m)	(10.01 x 2.38 x 2.17)							(10.31 x 2.38 x 2.17)

MODEL		WIZ-720E
Unit code		i37(610T)			i45(610T)	i63.6(720T)			i82.6(950T)
Screw type		Y	A	B	C	Y	A	B	Y	A	B
Screw diameter	in	2.76	2.95	3.35	3.54	3.35	3.54	3.94	3.94	4.13	4.53
Screw diameter	(mm)	(70)	(75)	(85)	(90)	(85)	(90)	(100)	(100)	(105)	(115)
Injection capacity (PS)	oz	52.5	60.2	77.4	87.7	92.1	103.2	127.5	135.1	148.9	178.7
Injection capacity (PS)	(g)	(1,487)	(1,707)	(2,193)	(2,458)	(2,610)	(2,926)	(3,613)	(3,830)	(4,222)	(5,065)
Max. Injection pressure	Mpa	226	196	157	167	226	196	157	196	177	147
	psi	32,714	28,447	22,757	24,180	32,714	28,447	22,757	28,447	25,602	21,335
	(kg/㎠)	(2,300)	(2,000)	(1,600)	(1,700)	(2,300)	(2,000)	(1,600)	(2,000)	(1,800)	(1,500)
Clamping force	US ton	715
Clamping force	kN	6,374
Clamping stroke	in	39.4
Clamping stroke	(mm)	(1,000)
Tie bar clearance (H x V)	in	41.7 x 37.8
Tie bar clearance (H x V)	(mm)	(1,060 x 900)
Platen dimension (H x V)	in	59.1x 55.1
Platen dimension (H x V)	(mm)	(1,500 x 1,500)
Daylight	in	82.7
Daylight	(mm)	(2,100)
Mold thickness	in	17.7 ~ 43.3
Mold thickness	(mm)	(450 ~ 1,100)
Machine dimension (L x W x H)	ft	35.1 x 8.1 x 7.2
Machine dimension (L x W x H)	(m)	(10.69 x 2.48 x 2.19)

MODEL		WIZ-950E
Unit code		i37(610T)			i45(610T)	i63.6(720T)			i82.6(950T)
Screw type		Y	A	B	C	Y	A	B	Y	A	B
Screw diameter	in	2.76	2.95	3.35	3.54	3.35	3.54	3.94	3.94	4.13	4.53
Screw diameter	(mm)	(70)	(75)	(85)	(90)	(85)	(90)	(100)	(100)	(105)	(115)
Injection capacity (PS)	oz	52.5	60.2	77.4	87.7	92.1	103.2	127.5	135.1	148.9	178.7
Injection capacity (PS)	(g)	(1,487)	(1,707)	(2,193)	(2,458)	(2,610)	(2,926)	(3,613)	(3,830)	(4,222)	(5,065)
Max. Injection pressure	Mpa	226	196	157	167	226	196	157	196	177	147
	psi	32,714	28,447	22,757	24,180	32,714	28,447	22,757	28,447	25,602	21,335
	(kg/㎠)	(2,300)	(2,000)	(1,600)	(1,700)	(2,300)	(2,000)	(1,600)	(2,000)	(1,800)	(1,500)
Clamping force	US ton	935
Clamping force	kN	8,336
Clamping stroke	in	39.4
Clamping stroke	(mm)	(1,200)
Tie bar clearance (H x V)	in	52.0 x 44.1
Tie bar clearance (H x V)	(mm)	(1,320 x 1,120)
Platen dimension (H x V)	in	73.6 x 65.7
Platen dimension (H x V)	(mm)	(1,870 x 1,670)
Daylight	in	98.4
Daylight	(mm)	(2,500)
Mold thickness	in	19.7 ~ 51.2
Mold thickness	(mm)	(500 ~ 1,300)
Machine dimension (L x W x H)	ft	36.8 x 9.6 x 7.9
Machine dimension (L x W x H)	(m)	(11.21 x 2.94 x 2.42)

All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
E-Solution Inc is not responsible for any inaccuracies contained herein.
Please consult our sales representative or our head office before designing a mold.
Actual plasticizing capacity may vary, depending on the molding conditions and material used.

FEATURES

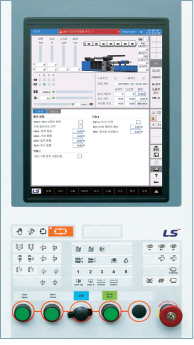

15" KEBA Controller

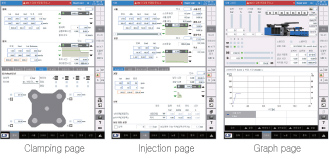

Dual split screen
Multi-Touch Screen
Real time data setting and operation
User Friendly UI
Manual operation Button
USB port, Key switch (optional)

WIZ Screw & Barrel Technology

Nordson XALOY standard

Technical Agreement with Nordson Xaloy

LS Barrel Technology

Based on Nordson Xaloy's 85 year experience, the bimetal barrel is more resistant to wear & corrosion and has much longer lifespan than Chinese-made products

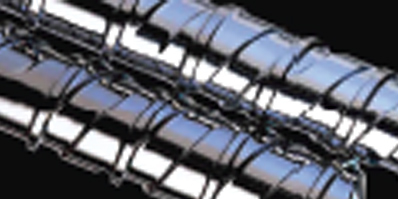

LS Screw Technology

Based on Nordson Xaloy Pulsar Design
Allows for lower temperature processing for shorter cooling time
3x mixing efficiency compared to general screws
Time required for purging is reduced by about 25%

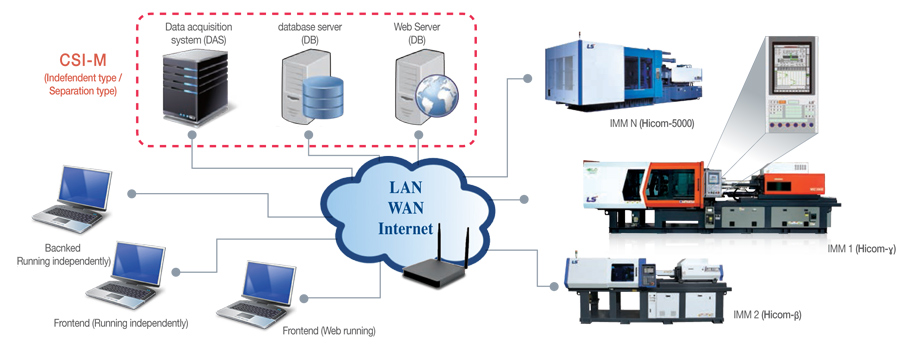

LS CSI Monitoring System

Mobile device system monitoring
Multiple connections to LS Mtron Machines
Status monitoring and control functions
OPC interface to work with customer ERP
