theOne SERIES

Premium two-platen direct lock
(550~3600 US ton)
  • Fast dry cycle time (1,000m/sec)
  • Wide platen design
  • Oil-free slide bushing
  • Quick barrel change design
  • Retractable Tie Bar System (optional)
DOWNLOAD CATALOG >
MODEL theONE-550
 Unit code i30
 Screw type Y A B
 Screw diameter in 2.56 2.76 3.15
(mm) (60) (70) (80)
 Injection capacity (PS) oz 35.4 48.2 62.9
(g) (1,175) (1,363) (1,780)
 Max. Injection pressure Mpa 273 201 154
psi 39,595 29,091 22,272
(kg/㎠) (2,784) (2,045) (1,566)
 Clamping force US ton 550
kN 4,902
 Clamping stroke in 47.2
(mm) (1,200)
 Tie bar clearance (H x V) in 36.2 x 31.9
(mm) (920 x 810)
 Platen dimension (H x V) in 51.2 x 49.2
(mm) (1,300 x 1,250)
 Daylight in 61.0
(mm) (1,550)
 Mold thickness in 14.0 ~ 35.0
(mm) (350 ~ 900)
 Machine dimension (L x W x H) ft 23.0 x 7.9 x 7.2
(m) (7.4 x 2.6 x 2.1)
MODEL theONE-660
 Unit code i46
 Screw type Y A B
 Screw diameter in 2.76 2.95 3.35
(mm) (70) (80) (90)
 Injection capacity (PS) oz 55.0 71.9 91.0
(g) (1,470) (1,685) (2,165)
 Max. Injection pressure Mpa 266 203 161
psi 38,508 29,482 23,295
(kg/㎠) (2,707) (2,073) (1,638)
 Clamping force US ton 663
kN 5,909
 Clamping stroke in 53.1
(mm) (1,350)
 Tie bar clearance (H x V) in 39.8 x 35.8
(mm) (1,010 x 910)
 Platen dimension (H x V) in 55.1 x 53.1
(mm) (1,400 x 1,350)
 Daylight in 68.9
(mm) (1,750)
 Mold thickness in 16.0 ~ 39.0
(mm) (400 ~ 1,000)
 Machine dimension (L x W x H) ft 24.0 x 8.5 x 7.9
(m) (7.7 x 2.7 x 2.2)
MODEL theONE-770
 Unit code i66
 Screw type Y A B
 Screw diameter in 3.35 3.54 3.94
(mm) (80) (90) (105)
 Injection capacity (PS) oz 80.9 102.4 139.3
(g) (2,584) (2,897) (3,575)
 Max. Injection pressure Mpa 253 200 147
psi 36,669 28,973 21,286
(kg/㎠) (2,578) (2,037) (1,497)
 Clamping force US ton 771
kN 6,878
 Clamping stroke in 55.1
(mm) (1,400)
 Tie bar clearance (H x V) in 43.3 x 37.4
(mm) (1,110 x 950)
 Platen dimension (H x V) in 59.1 x 56.7
(mm) (1,500 x 1,440)
 Daylight in 72.8
(mm) (1,850)
 Mold thickness in 18.0 ~ 43.0
(mm) (450 ~ 1,100)
 Machine dimension (L x W x H) ft 26.6 x 8.9 x 8.2
(m) (8.3 x 2.9 x 2.2)
MODEL theONE-1000
 Unit code i101
 Screw type Y A B
 Screw diameter in 3.74 4.13 4.53
(mm) (90) (105) (115)
 Injection capacity (PS) oz 119.9 163.2 195.8
(g) (3,780) (4,620) (5,540)
 Max. Injection pressure Mpa 270 198 165
psi 39,088 28,718 23,940
(kg/㎠) (2,748) (2,019) (1,683)
 Clamping force US ton 993
kN 8,852
 Clamping stroke in 70.9
(mm) (1,800)
 Tie bar clearance (H x V) in 46.5 x 39.8
(mm) (1,180 x 1,010)
 Platen dimension (H x V) in 63.8 x 60.6
(mm) (1,620 x 1,540)
 Daylight in 90.6
(mm) (2,300)
 Mold thickness in 20.0 ~ 47.0
(mm) (500 ~ 1,200)
 Machine dimension (L x W x H) ft 31.2 x 9.8 x 8.9
(m) (9.1 x 3.2 x 2.4)
MODEL theONE-1200
 Unit code i101
 Screw type Y A B
 Screw diameter in 3.74 4.13 4.53
(mm) (90) (105) (115)
 Injection capacity (PS) oz 119.9 163.2 195.8
(g) (3,780) (4,620) (5,540)
 Max. Injection pressure Mpa 270 198 165
psi 39,088 28,718 23,940
(kg/㎠) (2,748) (2,019) (1,683)
 Clamping force US ton 1,213
kN 10,818
 Clamping stroke in 70.9
(mm) (1,800)
 Tie bar clearance (H x V) in 55.9 x 45.3
(mm) (1,420 x 1,150)
 Platen dimension (H x V) in 76.8 x 64.9
(mm) (1,950 x 1,650)
 Daylight in 94.5
(mm) (2,400)
 Mold thickness in 24.0 ~ 51.0
(mm) (600 ~ 1,300)
 Machine dimension (L x W x H) ft 32.2 x 10.8 x 9.2
(m) (9.4 x 3.5 x 2.5)
MODEL theONE-1400
 Unit code i135
 Screw type Y A B
 Screw diameter in 4.13 4.53 4.92
(mm) (105) (115) (125)
 Injection capacity (PS) oz 178.7 214.4 253.3
(g) (5,039) (6,044) (7,141)
 Max. Injection pressure Mpa 240 200 169
psi 34,809 29,019 24,561
(kg/㎠) (2,447) (2,040) (1,727)
 Clamping force US ton 1,431
kN 12,754
 Clamping stroke in 92.5
(mm) (2,350)
 Tie bar clearance (H x V) in 60.2 x 50.4
(mm) (1,530 x 1,280)
 Platen dimension (H x V) in 82.3 x 74.0
(mm) (2,090 x 1,880)
 Daylight in 120.1
(mm) (3,050)
 Mold thickness in 28.0 ~ 55.0
(mm) (700 ~ 1,400)
 Machine dimension (L x W x H) ft 37.7 x 11.5 x 9.8
(m) (12.1 x 3.6 x 2.8)
MODEL theONE-2000
 Unit code i174
 Screw type Y A B
 Screw diameter in 4.53 4.92 5.51
(mm) (115) (125) (140)
 Injection capacity (PS) oz 233.0 275.2 345.3
(g) (6,570) (7,762) (9,737)
 Max. Injection pressure Mpa 238 202 161
psi 34,581 29,269 23,333
(kg/㎠) (2,431) (2,058) (1,640)
 Clamping force US ton 1,986
kN 17,708
 Clamping stroke in 102.4
(mm) (2,600)
 Tie bar clearance (H x V) in 72.8 x 63.4
(mm) (1,850 x 1,610)
 Platen dimension (H x V) in 96.5 x 88.9
(mm) (2,450 x 2,260)
 Daylight in 133.9
(mm) (3,400)
 Mold thickness in 31.0 ~ 63.0
(mm) (800 ~ 1,600)
 Machine dimension (L x W x H) ft 42.0 x 12.5 x 11.2
(m) (13.0 x 4.1 x 3.4)
MODEL theONE-2500
 Unit code i220
 Screw type Y A B
 Screw diameter in 4.53 4.92 5.51
(mm) (125) (140) (160)
 Injection capacity (PS) oz 307.2 385.3 503.2
(g) (6,570) (7,762) (9,737)
 Max. Injection pressure Mpa 224 178 137
psi 32,476 25,889 19,822
(kg/㎠) (2,283) (1,820) (1,394)
 Clamping force US ton 2,539
kN 22,642
 Clamping stroke in 114.2
(mm) (2,900)
 Tie bar clearance (H x V) in 79.9 x 63.4
(mm) (2,030 x 1,610)
 Platen dimension (H x V) in 107.1 x 96.1
(mm) (2,720 x 2,440)
 Daylight in 145.7
(mm) (3,700)
 Mold thickness in 31.0 ~ 71.0
(mm) (800 ~ 1,800)
 Machine dimension (L x W x H) ft 42.0 x 13.5 11.2
(m) (15.4 x 4.3 x 3.5)
MODEL theONE-3000
 Unit code i332
 Screw type Y A B
 Screw diameter in 4.92 5.51 6.30
(mm) (140) (160) (190)
 Injection capacity (PS) oz 440.3 575.1 727.9
(g) (8,693) (10,905) (14,243)
 Max. Injection pressure Mpa 240 184 145
psi 34,809 26,651 21,057
(kg/㎠) (2,447) (1,874) (1,480)
 Clamping force US ton 2,981
kN 26,574
 Clamping stroke in 118.1
(mm) (3,000)
 Tie bar clearance (H x V) in 86.2 x 68.9
(mm) (2,190 x 1,750)
 Platen dimension (H x V) in 117.3 x 104.3
(mm) (2,980 x 2,650)
 Daylight in 153.5
(mm) (3,900)
 Mold thickness in 35.0 ~ 79.0
(mm) (900 ~ 2,000)
 Machine dimension (L x W x H) ft 50.5 x 15.1 x 11.5
(m) (16.5 X 5.0 X 3.7)
MODEL theONE-3600
 Unit code i630
 Screw type A B C
 Screw diameter in 5.51 6.30 7.09
(mm) (200) (230) (250)
 Injection capacity (PS) oz 1,123.3 1,485.6 1,755.1
(g) (12,463) (16,278) (20,602)
 Max. Injection pressure Mpa 179 135 114
psi 25,931 19,608 16,596
(kg/㎠) (1,823) (1,379) (1,167)
 Clamping force US ton 3,632
kN 32,385
 Clamping stroke in 122.0
(mm) (3,100)
 Tie bar clearance (H x V) in 89.4 x 71.3
(mm) (2,270 x 1,810)
 Platen dimension (H x V) in 122.8 x 106.3
(mm) (3,120 x 2,700)
 Daylight in 161.4
(mm) (4,100)
 Mold thickness in 39.0 ~ 83.0
(mm) (1,000 ~ 2,100)
 Machine dimension (L x W x H) ft 52.5 x 14.8 12.8
(m) (20.5 x 5.0 x 3.9)
  • All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
  • E-Solution Inc is not responsible for any inaccuracies contained herein.
  • Please consult our sales representative or our head office before designing a mold.
  • Actual plasticizing capacity may vary, depending on the molding conditions and material used.

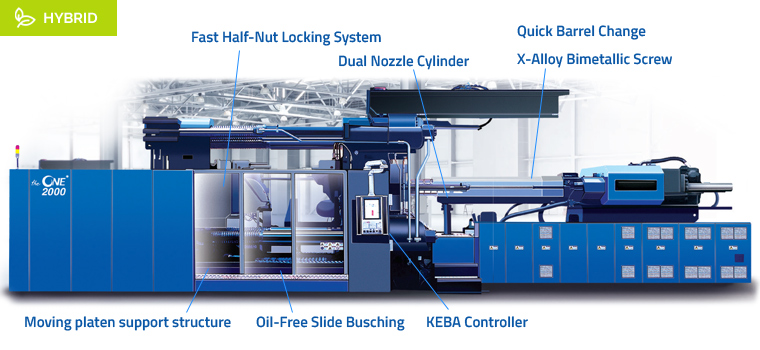

FEATURES

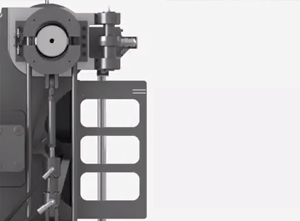

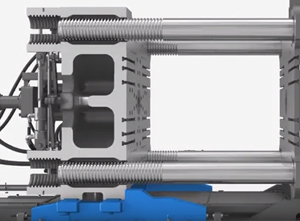

Center Press Platen
Increased Rigidity & Reduced Margin of Error (Applied U Shape screws)
Center Press Platen
30% Reduction in Operating Time (Simultaneous Half nut tightning)
Center Press Platen

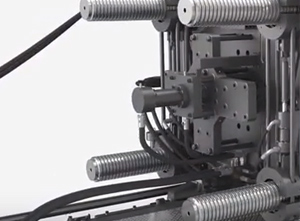

40% reduction in Tie bar deflection (oil-free sliding bushings)
Center Press Platen

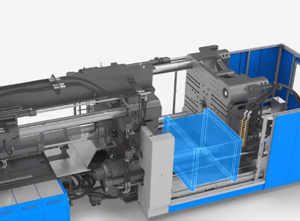

No Need for a mold truck (low ceiling design)
Center Press Platen
High pressure Hydraulic System (max mold open/close speed 1000mm/s)

Hybrid Servo System

Publications
Publications

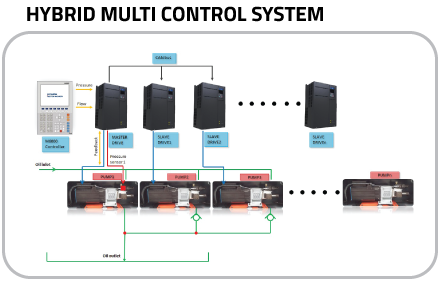

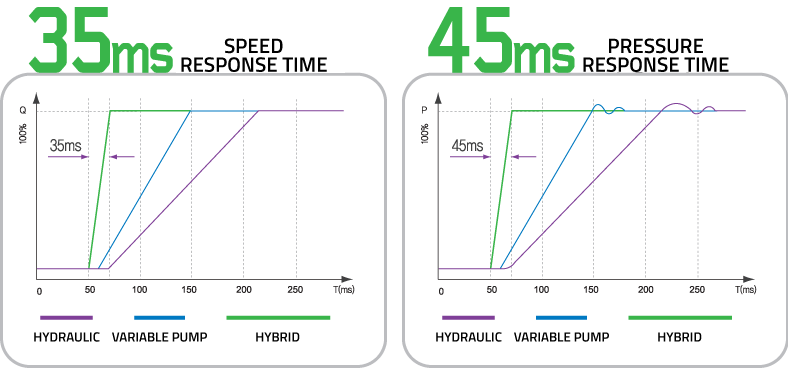

Achieve more precise control over speed and pressure with servo drive and motor
Publications
Publications

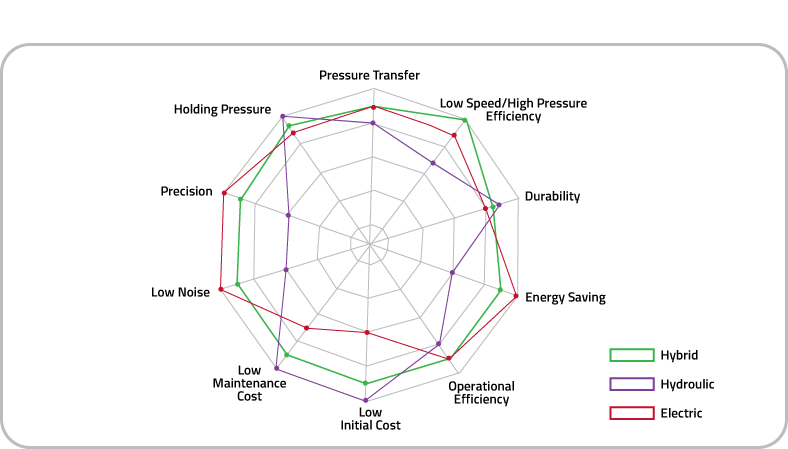

Save up to 70% in power consumption by drastically reducing rpm during idle process (down to 1-2% level or 15-40 rpm)
Publications
Publications
Publications

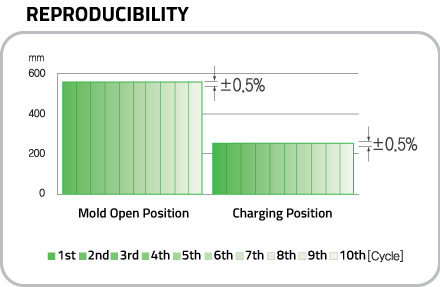

Exceptional reproducibility with +- 0.5% in mold positioning. Achieved PID Closed Loop control via high performance encoder and pressure sensor.

15" KEBA Controller

15" KEBA Controller
  • Dual split screen
  • Multi-Touch Screen
  • Real time data setting and operation
  • User Friendly UI
  • Manual operation Button
  • USB port, Key switch (optional)
